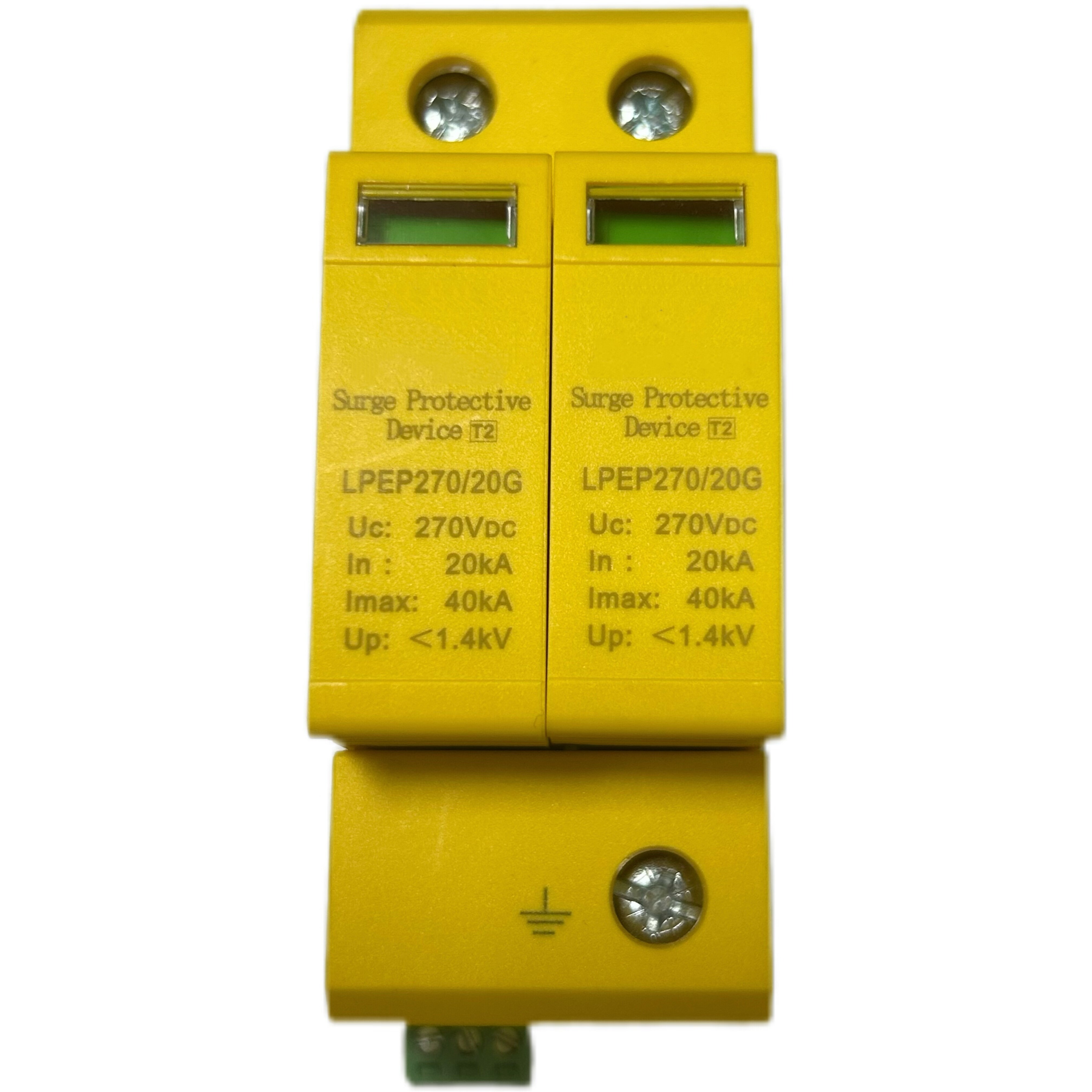

T2 Series - Surge Protective Device
The T2 Series AC Surge Protective Device is designed for overvoltage/surge protection in power secondary systems, including distribution cabinets, feeder panels, control/monitoring panels, UPS cabinets.
Features & Functions
■ Low Residual Voltage: High-quality phosphor bronze pins ensure minimal residual voltage and withstand repeated plugging.
■ Robust Surge Handling: Advanced current-sharing technology for continuous and multiple lightning strikes.
■ Thermal Disconnect: Fail-safe thermal cutoff mechanism prevents short circuits during faults.
■ Remote Signaling: Compatible with online monitoring systems.
■ Modular Design: V0 fire-rated housing, 35mm rail mounting for easy installation and maintenance.
Operating Conditions
Temperature: -40°C to +60°C
Humidity: 30%–95% RH (at 25°C)
Atmospheric Pressure: ≥74.8 kPa (equivalent to 2500m altitude)
Specifications
|
Model |
LPEP385/60M -4P/DL |
LPEP385/40M -4P/DL |
LPEP385/30M -4P/DL |
LPEP385/20M -4P/DL |
LPEP385/30M -2P/DL |
LPEP385/20M-2P/DL |
LPEP385/10M -2P/DL |
|
Rated Voltage “U0” |
220V |
220V |
220V |
220V |
220V |
220V |
220V |
|
Max. Continuous Voltage “Uc” |
385V |
385V |
385V |
385V |
385V |
385V |
385V |
|
Nominal Discharge Current “In”(8/20uS) |
60kA |
40kA |
30kA |
20kA |
30kA |
20kA |
10kA |
|
Max. Discharge Current “Imax” |
120kA |
80kA |
60kA |
40kA |
60kA |
40kA |
20kA |
|
Protection Level “Up” |
Up≤2.5kV |
Up≤2.0kV |
Up≤1.8kV |
Up≤1.8kV |
Up≤2.0kV |
Up≤1.8kV |
Up≤1.4kV |
|
Response Time “tA” |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
|
Frequency |
0-65Hz |
0-65Hz |
0-65Hz |
0-65Hz |
0-65Hz |
0-65Hz |
0-65Hz |
|
Protection Model |
Common Mode Protection |
Common Mode Protection |
Common Mode Protection |
Common Mode Protection |
Common Mode Protection |
Common Mode Protection |
Common Mode Protection |
|
Power System |
TT, TN |
TT, TN |
TT, TN |
TT, TN |
TT, TN |
TT, TN |
TT, TN |
|
Dimensions |
144mm×90mm×68mm |
144mm×90mm×68mm |
144mm×90mm×68mm |
72mm×90mm×68mm |
72mm×90mm ×68mm |
36mm×90mm×68mm |
36mm×90mm×68mm |
